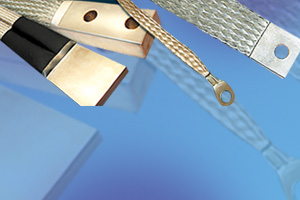

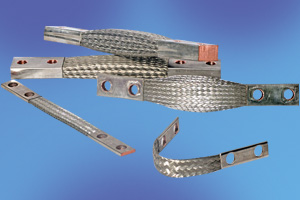

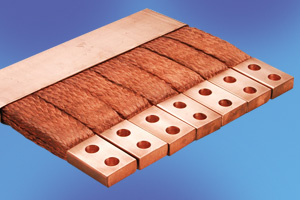

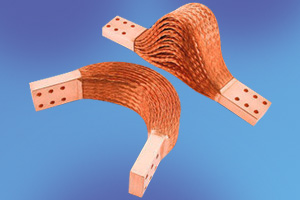

COPPER BRAIDED FLEXIBLE CONNECTORS

Braided copper connectors solve high-voltage connectivity problems created by vibration from generators and transformers. When used as the initial connector from vibration-producing equipment to a power distribution network, flexible connectors isolate the main electrical grounding bus bar work from the menace of vibration. And while flexible braided connectors are more expensive than using copper bus bar, copper braided flexible returns the investment by cutting the potential cost of down time, maintenance and energy loss created by loose electrical connections.

SPECIFICATIONS

  • Wire Condition: Bare, Tinned (Hot Dip)
  • Material: ETP Grade Cu wire(Annealed)
  • Wire Diameter: 0.10mm – 1.10mm
  • Range: 1 sq.mm – 4000 sq.mm
  • Plating on solid contact area: Bare, Tinned & Silver coating finish.
